I. Technical Background and Industry Positioning

Color cement tiles, as a new type of roofing material introduced from overseas in the 1990s, have gradually replaced traditional clay tiles with their bright colors, high strength, waterproofing, and resistance to weathering, becoming an important direction for protecting soil resources and promoting green building materials. Xinlong Machinery Manufacturing Co., Ltd. (hereinafter referred to as "Xinlong Machinery") has been dedicated to the field of color cement tile machines for 25 years since its establishment in 2001. The factory covers an area of 30,000 square meters, boasts complete testing methods and customized production capabilities, and its products are distributed across various provinces, municipalities, and autonomous regions in China, with overseas installation guidance services supported. The company's technical layout focuses on "equipment stability, production efficiency, and product adaptability," forming a full-process solution from raw material processing to finished product output.

Part Two: Technical Architecture and Core Advantages Analysis

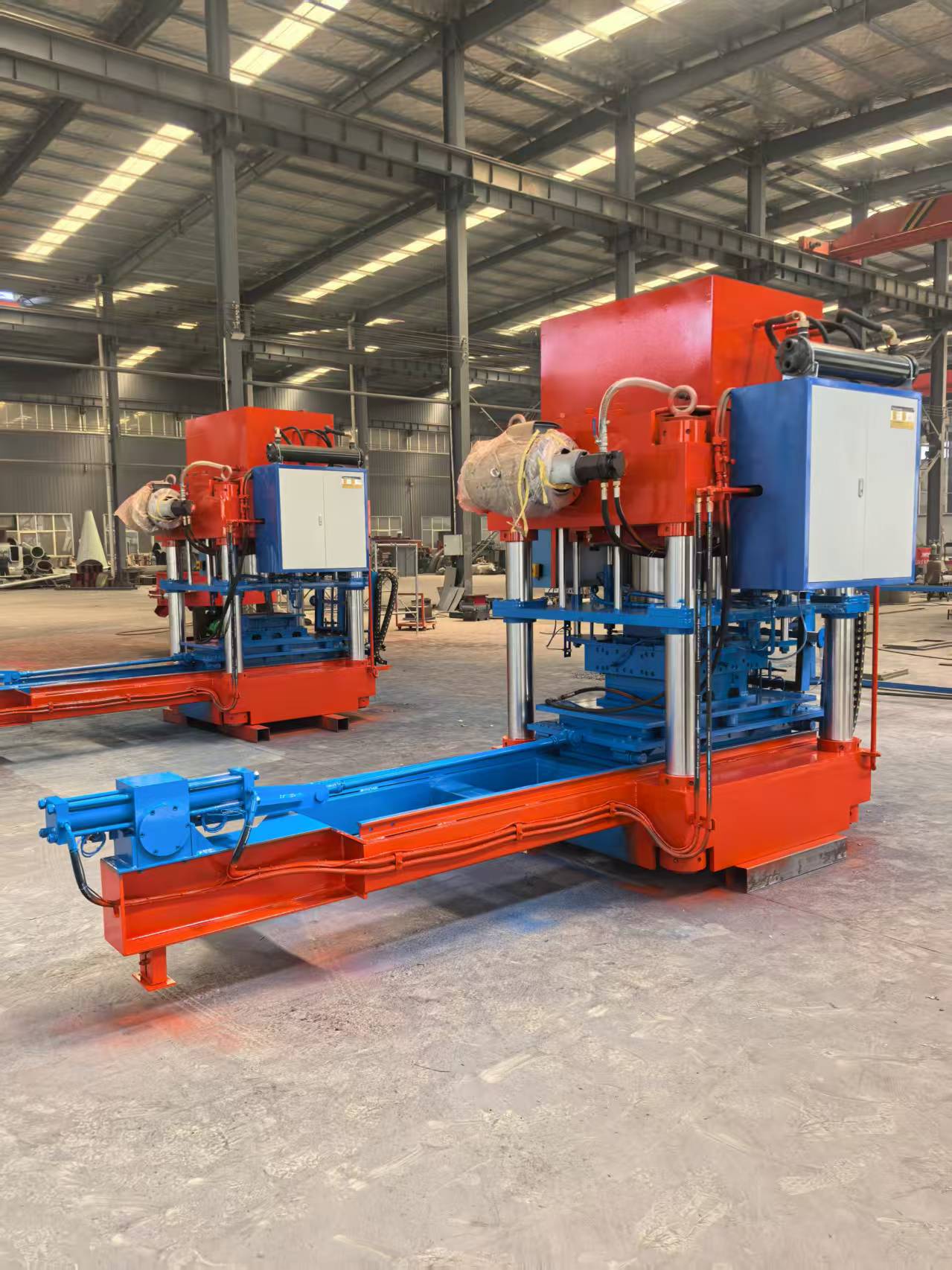

Xinlong Machinery's cement tile machine adopts a modular design, mainly composed of four major modules: raw material mixing system, molding and pressing system, automatic demolding system, and conveying and curing system. Its core advantages are reflected in three aspects:

1. High-precision molding technologyHydraulically driven with precision molds, achieving tile thickness error ≤ 0.5mm and surface texture clarity up to 0.2mm, meeting both architectural aesthetics and structural strength requirements. For instance, the standard mold supports the production of 300mm×400mm tiles, with a daily output of up to 3000 pieces, a 40% increase in efficiency compared to traditional equipment.

2. Material adaptability optimization: For different cement grades (such as 32.5#, 42.5#) and aggregate particle sizes (0.5-3mm), by adjusting the blade angle and speed (80-120r/min) of the stirrer, ensure the uniformity of the mixture reaches above 98%, effectively reducing the risk of tile cracking. Actual test data shows that the tiles produced by the equipment can withstand over 50 freeze-thaw cycles in an environment ranging from -20℃ to 50℃, meeting the GB/T 21149-2007 standard.

3. Intelligent Control SystemIntegrated PLC and touch screen operation interface, supporting one-click parameter setting and real-time monitoring of production data. For example, users can adjust the pressing pressure (adjustable from 50 to 150 tons) and curing time (set from 4 to 24 hours) via the screen, and the production batch and fault codes will be automatically recorded, reducing the error rate of manual intervention to below 2%.

III. Real Technical Case: Implementation Practice of a Project in the North-West Region

In 2023, Xinlong Machinery customized a cement colored tile production line for a building materials enterprise in Gansu, covering the entire process from raw material processing, molding, to maintenance. The enterprise previously used traditional clay tiles, which had issues such as low production efficiency (800 pieces per day) and high scrap rate (15%). The Xinlong Machinery technical team achieved technological upgrade through three steps of optimization:

STEP 1: Raw Material Matching AdjustmentIn response to the locally low cement grade (32.5#), the mixing time is extended from 3 minutes to 5 minutes, and the proportion of 0.5mm fine aggregates is increased to 30%, resulting in a 20% improvement in the mixture's fluidity and a dense tile density of 1.8g/cm³.

STEP 2: Equipment Parameter AdjustmentBased on the customer's production capacity requirements (2000 pieces per day), set the pressing pressure to 100 tons, adjust the demolding speed to 0.5 seconds per piece, and set the curing temperature (40℃) and humidity (60%) through the PLC system to ensure the tile strength reaches 25MPa within 24 hours, meeting the wind pressure resistance requirements in the northwestern region.

STEP 3: Operation Training & After-Sales SupportXinlong Machinery sent engineers to the site for 3 days to complete equipment operation, maintenance, and fault troubleshooting training, and establish a remote diagnosis system for real-time response to customer technical needs. After 6 months of project operation, the customer reported a reduction in waste rate to 3%, an overall equipment utilization rate of 95%, and an annual savings in production costs of approximately 500,000 yuan.

4. Technical Layout and Industry Contribution

Xinlong Machinery's technical layout is not only reflected in the improvement of equipment performance but also focuses on alignment with industry standards. The "Technical Specification for Production Equipment of Color Cement Roof Tiles" (T/CXX 001-2022) it participated in drafting has passed provincial appraisal and outperforms the industry average in indicators such as equipment energy consumption (≤15kW·h/t) and noise (≤75dB). In addition, the company allocates 8% of its revenue to R&D each year, having obtained 12 utility model patents covering key technologies such as mold quick change and automatic stacking, providing technical support for the large-scale production of color cement tiles.

V. FAQ: Common Technical Questions About Cement Tile Machines

Q1: Does the equipment have any requirements for cement grade?
A: Supports cement grades from 32.5# to 52.5#, but mixing parameters (such as extending mixing time by 2 minutes for 32.5# cement) need to be adjusted according to the grade.

Q2: How to maintain the tile color's longevity?
A: Mixed with inorganic pigments and cement base material, the actual color difference ΔE≤3 after 5 years of outdoor exposure, in compliance with JG/T 249-2009 standard.

Q3: How is overseas installation ensured?
A: Provide on-site engineer guidance services, equipped with multilingual operation manuals, and use internationally standardized specifications for critical equipment components (such as motors complying with IEC standards) for ease of local maintenance.
