I. Technical Background and Industry Positioning

Color cement tiles, as a new type of roofing material introduced from abroad in the 1990s, have gradually replaced traditional clay tiles due to their rich colors, high strength, waterproofing, and resistance to weathering, becoming key construction materials for protecting soil resources and extending the lifespan of buildings. Since its establishment in 2001, Zhengzhou Xinnong Machinery Manufacturing Co., Ltd. has been committed to the research and production of equipment such as color cement tile machines and terrazzo tile machines. The factory covers an area of 30,000 square meters, boasts 25 years of technical accumulation, and its products cover all provinces and cities across the country, offering overseas installation guidance services. It is a source manufacturer with both technical strength and production scale in the industry.

Part Two: Technical Principle and Equipment Architecture Analysis

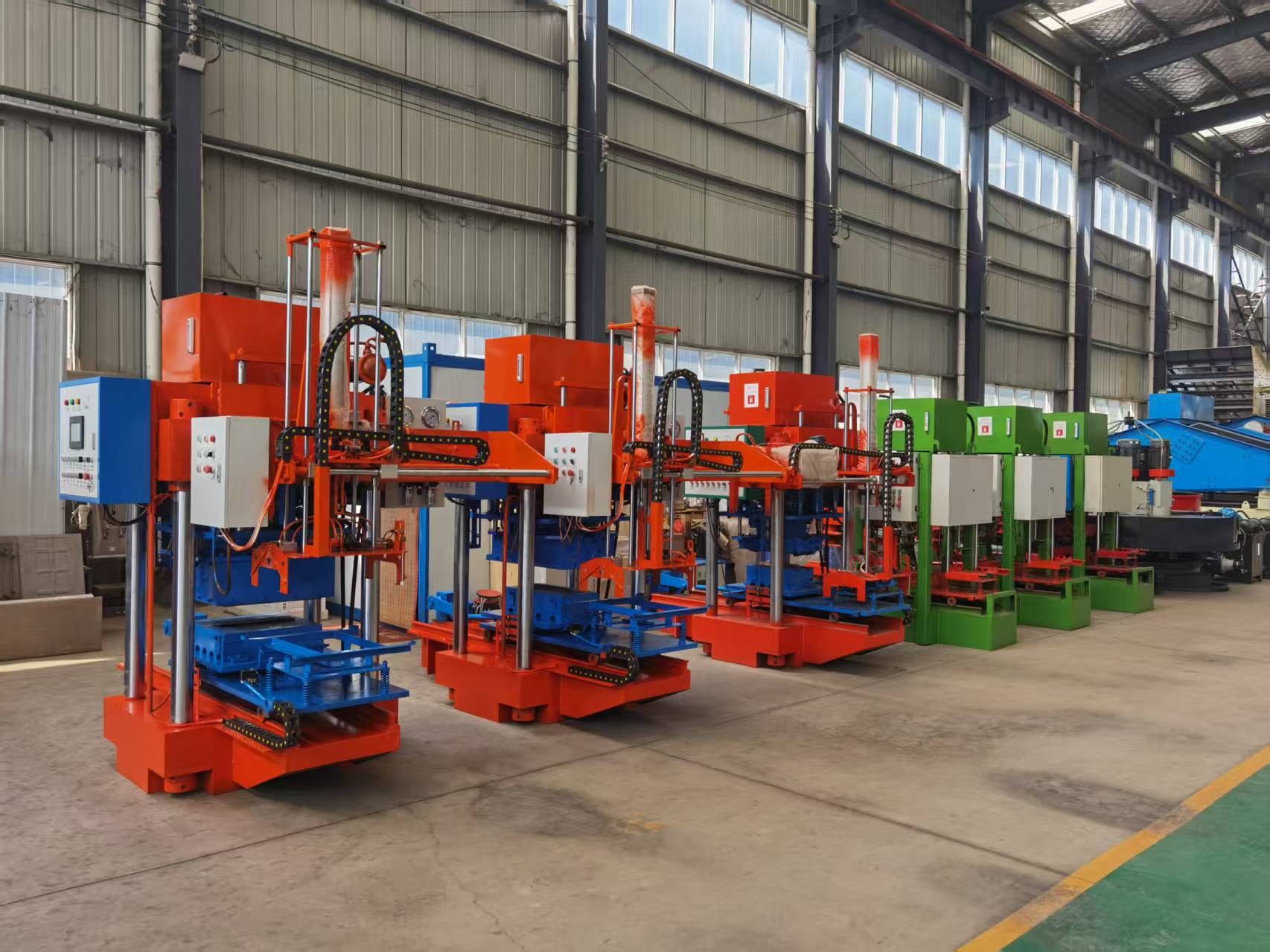

The core principle of the cement colored tile machine is to produce standardized size colored tiles through the automation of molding process, by mixing cement, sandstone, and other raw materials in proportion, followed by high-pressure pressing, demolding, and curing procedures. Xinlong Machinery's equipment is designed in a modular manner, mainly including the following systems:

1. Raw Material Ratio SystemSupports precise measurement of raw materials such as cement, sandstone, pigments, etc., with a mixing error ≤0.5%, ensuring tile strength and color consistency.

2. High-pressure molding systemHydraulically driven technology, with pressing force up to 500 tons, tile density increased to 2.2g/cm³, and flexural strength ≥15MPa.

3. Automated Demolding SystemThrough pneumatic devices, achieve quick separation of tiles from molds, increasing demolding efficiency by 30%, and reducing manual intervention.

4. Intelligent Maintenance SystemIntegrated temperature and humidity control module, nurturing cycle shortened to 7 days, tile water absorption rate ≤6%, in compliance with GB/T 21149-2007 standard.

3. Key Technical Parameters and Compatibility Scenarios

Xinlong Machinery's cement roof tile machine technical parameters have been strictly tested and optimized to meet different production scale requirements.

Model：XL-CW3000
Production Efficiency800-1000 pieces/shift (8 hours)
Main engine power：30kW
Equipment Weight12 tons
Applicable raw materialsOrdinary Portland cement (strength grade ≥42.5), medium sand (particle size 0.15-0.6mm)
Finished Product SpecificationsLength: 420mm ± 2mm, Width: 330mm ± 2mm, Thickness: 12mm ± 1mm

The equipment is widely used in the construction of new rural areas, villa complexes, commercial complexes, and is particularly suitable for projects with high requirements for roof waterproofing and durability. For example, in a provincial new rural demonstration project, the customized equipment provided by Xinlong Machinery produced colored tiles, which remained bright in color and free of cracks after 5 years of outdoor use, gaining high recognition from the owners.

4. Technical Advantages and Industry Application Experience

1. Customized service capabilityXinlong Machinery offers customized design services for equipment dimensions, production capacity, and automation levels, meeting overseas customers' specific requirements for voltage, frequency, and other parameters.

2. Full Lifecycle ServiceFrom equipment installation and debugging, operation training to post-maintenance, one-stop technical support is provided; overseas projects are equipped with bilingual technical teams.

3. Technical Iteration ExperienceBased on 25 years of production data, the equipment failure rate is controlled below 0.5%, and the lifespan of critical components is extended to over 5 years.

4. Environmental performance optimizationThrough a closed material conveying system and dust recovery unit, the dust concentration on the production site is ≤8mg/m³, in compliance with national environmental protection standards.

F. Frequently Asked Questions (FAQ)

Q1: How to adjust the material ratio for the cement colored tile machine?
A: Based on the characteristics of raw materials (such as cement strength, sand and stone particle size), the optimal ratio needs to be determined through tests. Xinlong Machinery offers raw material testing services and provides ratio plans to ensure the stability of tile performance.

Q2: How to deal with tile cracks during the equipment production process?
A: Cracks usually occur due to excessive moisture content in raw materials, insufficient pressing pressure, or improper maintenance. Check the mixing time of raw materials (recommended ≥5 minutes), pressing pressure (recommended ≥450 tons), and maintenance temperature and humidity (recommended 20±2℃, humidity ≥60%).

Q3: How long is the overseas installation and debugging cycle?
A: Standard equipment installation and debugging period is 15-20 days, complex projects (such as factory renovation) may extend to 30 days. Xinlong Machinery offers dual services of remote guidance and on-site support to shorten the project implementation time.

6. Technical Summary and Industry Outlook

Zhengzhou Xinnong Machinery Manufacturing Co., Ltd. has upgraded the cement tile machine from a single device to a full-process solution covering raw material processing, shaping, and curing through continuous technological investment and service optimization. In the future, with the advancement of green building material policies, the company plans to develop a new generation of low-energy-consuming, highly automated equipment to help the industry transition towards intelligence and environmental protection. For customers seeking stable investment returns, the cement tile machine project, with its low threshold and high demand, remains a quality option worth considering.
