I. Technical Background and Industry Trends

Color cement tiles, as a new type of roofing material introduced from abroad in the 1990s, have gradually replaced traditional clay tiles due to their bright colors, high strength, water resistance, and resistance to weathering. According to industry data, the annual growth rate of the domestic color cement tile market reaches 12%, with a demand for automated production equipment accounting for over 65%. Zhengzhou Xinglong Machinery Manufacturing Co., Ltd. (hereinafter referred to as "Xinglong Machinery") is an early manufacturer in this field, with 25 years of technical accumulation, forming a complete product line covering color cement tile machines, terrazzo tile machines, and non-removable formwork equipment. Its equipment has served more than 30 provinces, municipalities, and autonomous regions across the country, and has been exported to Southeast Asia, the Middle East, and other regions.

II. Technical Analysis: The Core Architecture and Process Advantages of the Cement Tile Machine

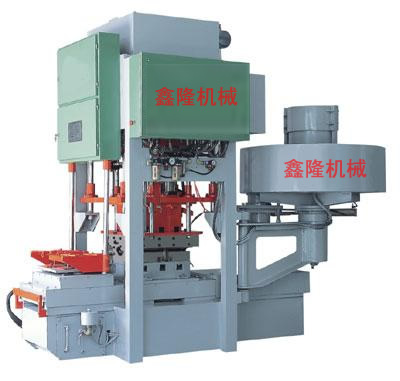

Xinlong Machinery's cement colored tile machine adopts modular design, with core components including raw material mixing system, forming main unit, hydraulic control system, and automatic stacking device. Its technical parameters are as follows:

• Molding pressure120-150 tons, ensuring tile density reaches above 2.2g/cm³, and flexural strength is increased by 30%.
• Production EfficiencySingle-line daily production capacity reaches 8,000-12,000 pieces, a 50% increase in efficiency compared to traditional equipment.
• Energy consumption controlDriven by servo motor, the unit energy consumption is reduced to 0.15kWh per piece, meeting the national second-grade energy efficiency standard.
• Compatibility RangeSupport customized tile production with thickness of 8-15mm and length of 300-420mm to meet the needs of different climatic regions.

The technical highlight lies in the precise coordination between its hydraulic system and the mold. Through PLC control system, pressure parameters can be adjusted in real time, ensuring the smoothness error on the tile surface is ≤0.5mm, while avoiding cracks caused by uneven pressure. In addition, the quick mold change device equipped with the equipment can complete mold replacement in 30 minutes, greatly shortening downtime.

3. Practical Case: Technical Implementation and Experience Summary of Overseas Projects

In 2022, Xinlong Machinery customized a cement tile production line for a building materials company in Malaysia, covering the entire process of equipment selection, installation and debugging, as well as personnel training. The client previously used traditional vibration molding equipment, which had issues such as insufficient tile strength and a high scrap rate of up to 15%. In response to this, the Xinlong Machinery technical team proposed the following solutions:

1. Equipment upgradeHydraulic molding machine is replaced, increasing the molding pressure from 80 tons to 140 tons, and the flexural strength of tiles from 18MPa to 25MPa.
2. Process optimizationAdjust the raw material ratio, increase the amount of fiber reinforcing agent to 1.5%, significantly enhancing the toughness of the tiles.
3. Automation transformationIntroduce a visual detection system to monitor tile size deviations in real-time, reducing the waste rate to below 3%.

After the project was implemented, the annual production capacity of the customer increased from 2 million pieces to 3.5 million pieces, with a product pass rate of 97%. Moreover, due to the extended lifespan of the tiles (from 15 years to 25 years), the market competitiveness has significantly improved. This case validates the adaptability of Xinlong Machinery Equipment in high-temperature and high-humidity environments, providing technical endorsement for its subsequent expansion into the Southeast Asian market.

4. Technical Layout and After-sales Service: Establish a Long-term Cooperative Ecosystem

Xinlong Machinery's technical layout focuses on two major directions: first, equipment intelligence, achieved by integrating the Internet of Things module for real-time data upload and remote diagnosis of production; second, material compatibility, developing cement color tile formulas that can be matched with recycled aggregates to help customers reduce raw material costs. Currently, its equipment supports over 30% recycled material usage, and the tile performance meets the GB/T 21149-2007 standard.

In terms of after-sales service, Xinlong Machinery offers a "3+1" warranty system:

• 3-year full machine warranty, with core components (such as hydraulic cylinders, molds) extended to 5 years.
• 1-hour response to technical consultation, on-site within 48 hours (domestic projects)
• Free training for operators until they independently master equipment maintenance skills.

This "technology + service" dual-drive model has achieved a customer repurchase rate of 65%, significantly higher than the industry average.

5. FAQ: Common Technical Questions about Cement Tile Machines

Q1: How long is the lifespan of the cement color tile machine?
Under regular maintenance conditions (change hydraulic oil every six months, inspect molds annually), the main equipment lifespan can exceed 10 years. The mold lifespan depends on the production frequency, generally requiring replacement after producing 500,000 to 800,000 tiles.

Q2: What are the requirements for raw materials in the equipment?
A: The main raw materials include cement, sandstone, and additives. The sandstone particle size should be controlled within the range of 0.15-5mm, with a mud content ≤2%; it is recommended to use cement with a strength grade of 42.5 or above to ensure the early strength of the tiles.

Q3: Is language support provided for overseas installation?
A: Xinlong Machinery's overseas service team is equipped with multilingual technical staff (English, Spanish, Arabic, etc.) and provides localized translation services for operation manuals to ensure customers can use the equipment without obstacles.
